| Sizes in mm(inch) | Pressure Rating |
|---|---|
| Flanged Ends | |
| 15 (1/2″) to 300 (12″) | Class 150 & 300 |
| Screwed Ends | |
| Screwed Ends/ Socket Weld Ends | Class 800 |
| Screwed Ends/ Socket Weld Ends | Class 600 |
| Design Std. | BS EN ISO 17292 (BS 5351), API 6D. |
| Face to Face (For Flanged End Only) | ASME B16.10, EN 558-2. |
| Testing Std. | API 598, BS:6755-1, EN 12266-1 |
| Body & Insert Material | WCB, CF8, CF8M, CN7M, CS, 304, 316 etc. |
| Ball Material | 410, 304, 316, CA15, CF8, CF8M, CN7M etc. |
| Stem Material | 410, 304, 316, 17-4PH etc. |
| Seat | PTFE / CFT / GFT / DELRIN / NYLON / PEEK / METAL |

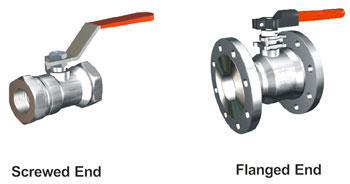

| End Connection | Flanged, Screwed, Socket. |
| End Detail | For SE – BS:21 (Parallel/ Taper) / ASME B1.20.1 (NPT) Threads, SWE-B16.11. |
